Machine working weight

550KG

Dimensions

2215*765*1345

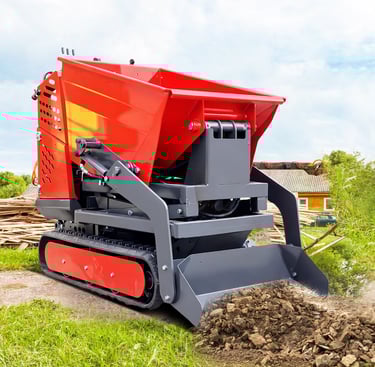

LADYS Mini Dumper

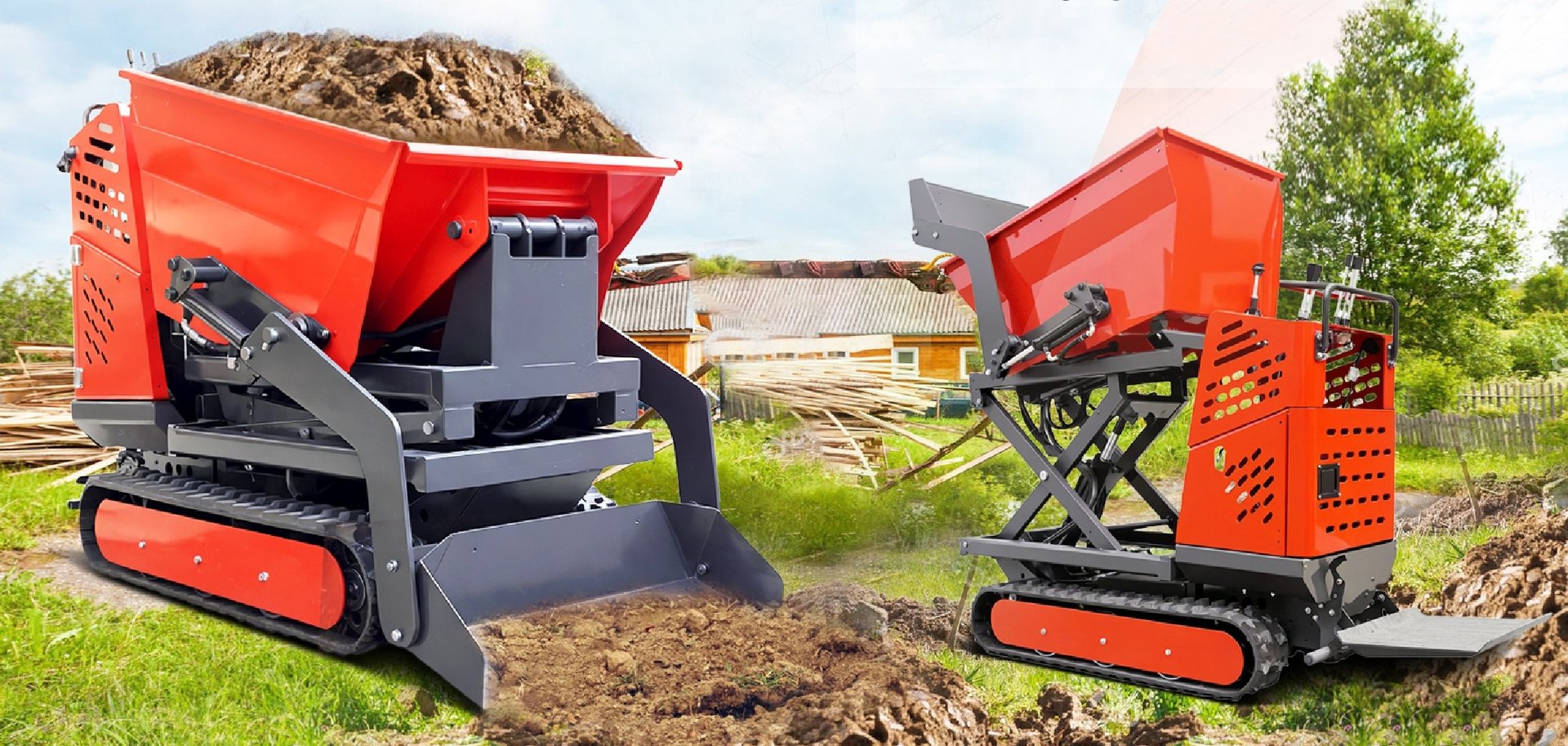

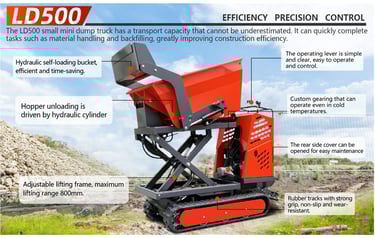

LD500 mini dumper comes with a hydraulic bucket. Its larger bucket offers greater capacity, increased loading capacity, and higher efficiency.

• Easy transport of gravel, soil, building materials and more

• Easy access with caterpillar tracks

• Load capacity up to 550kg

• Highly manoeuvrable in tight spaces

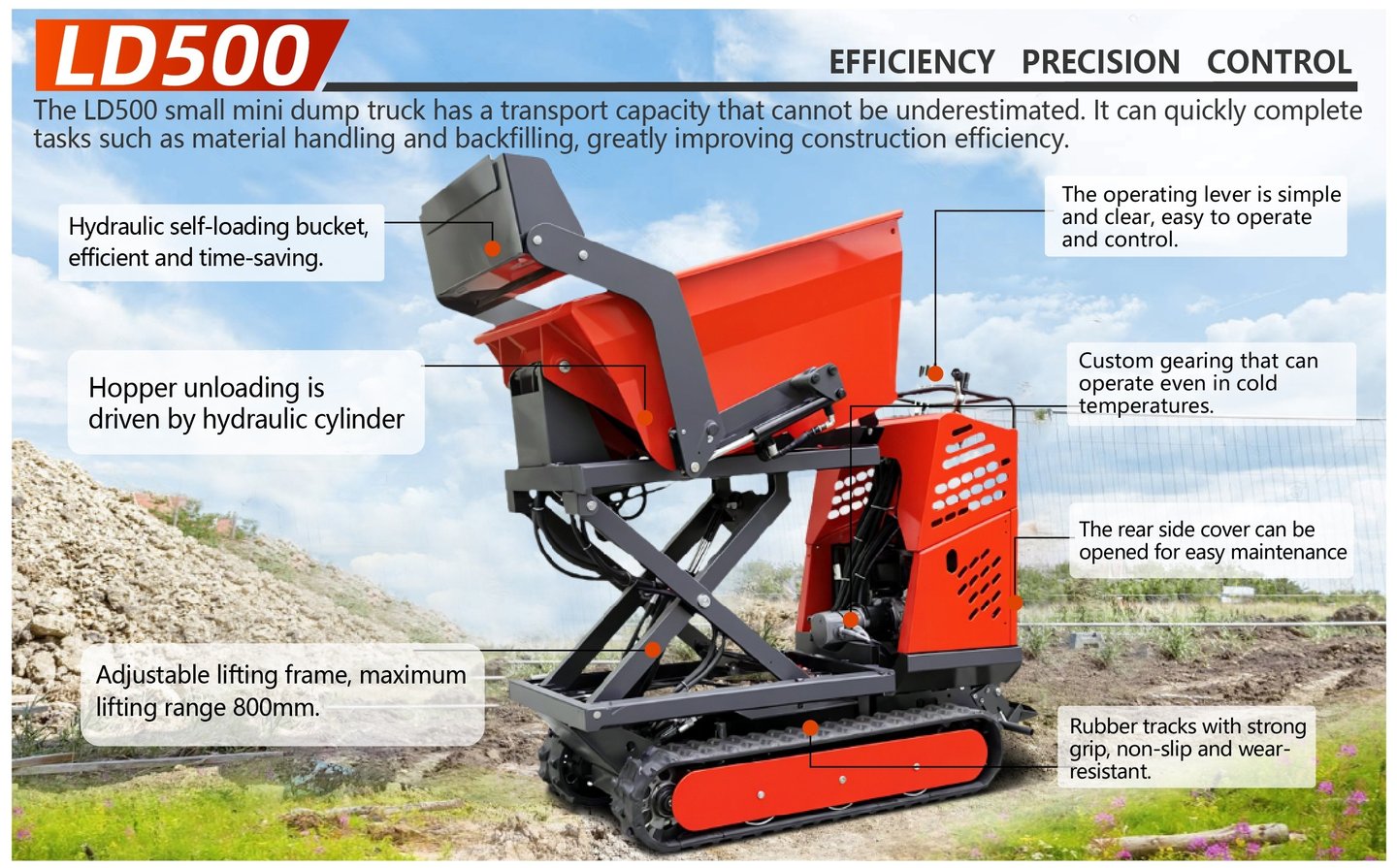

• Hydraulic dump function

• Machine working weight (kg) : 550

• Machine dimensions (length x width x height) : 2215*765*1345 MM

• Cargo bucket capacity (m³) : 1.2

• Travel speed low/high speed (Km/h) : 0-4

• Climbing ability (%) : 20

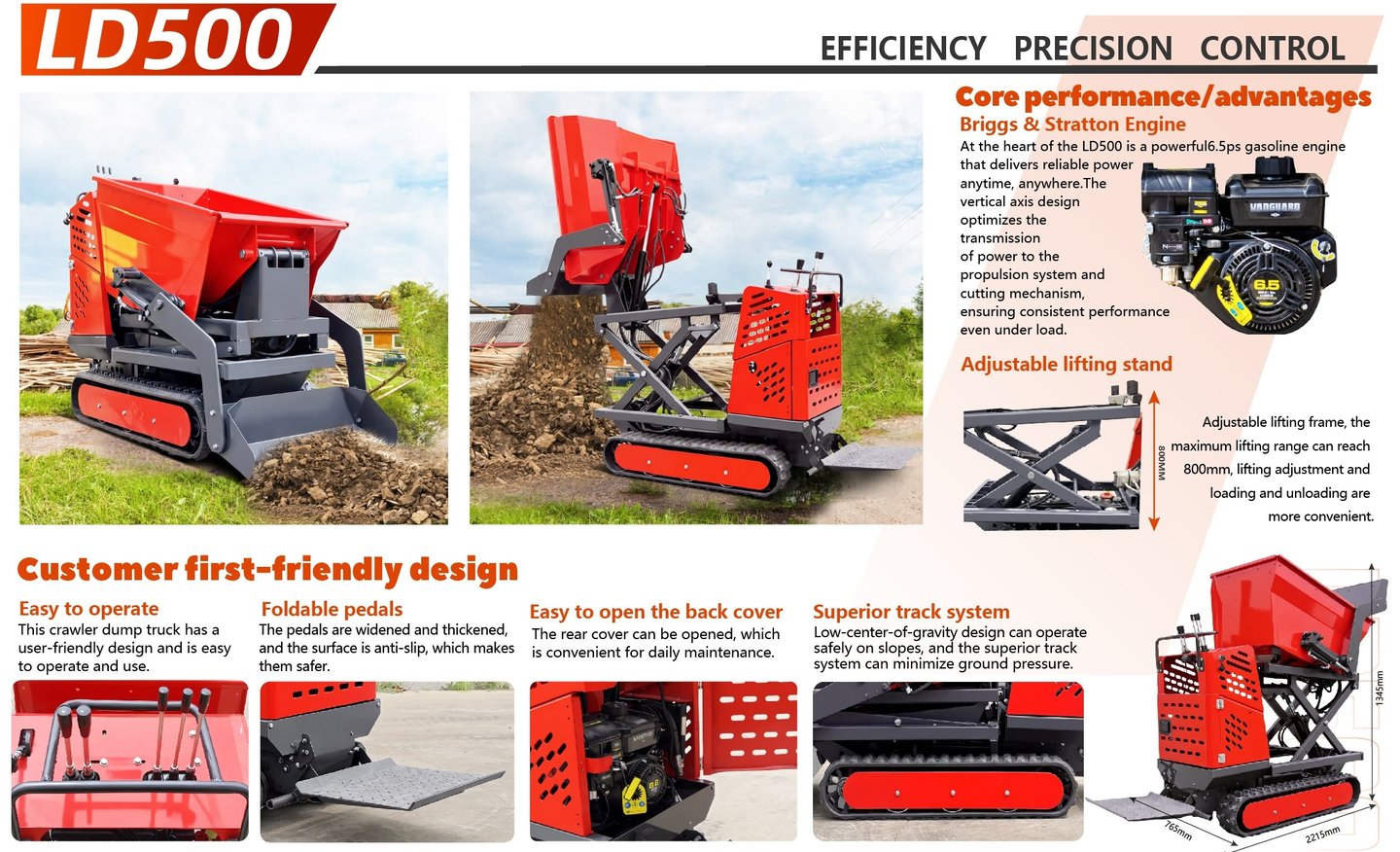

• Lifting height (mm) : 800

• Maximum lifting force (Kg) : 2000

• Hydraulic oil tank (L) : 16

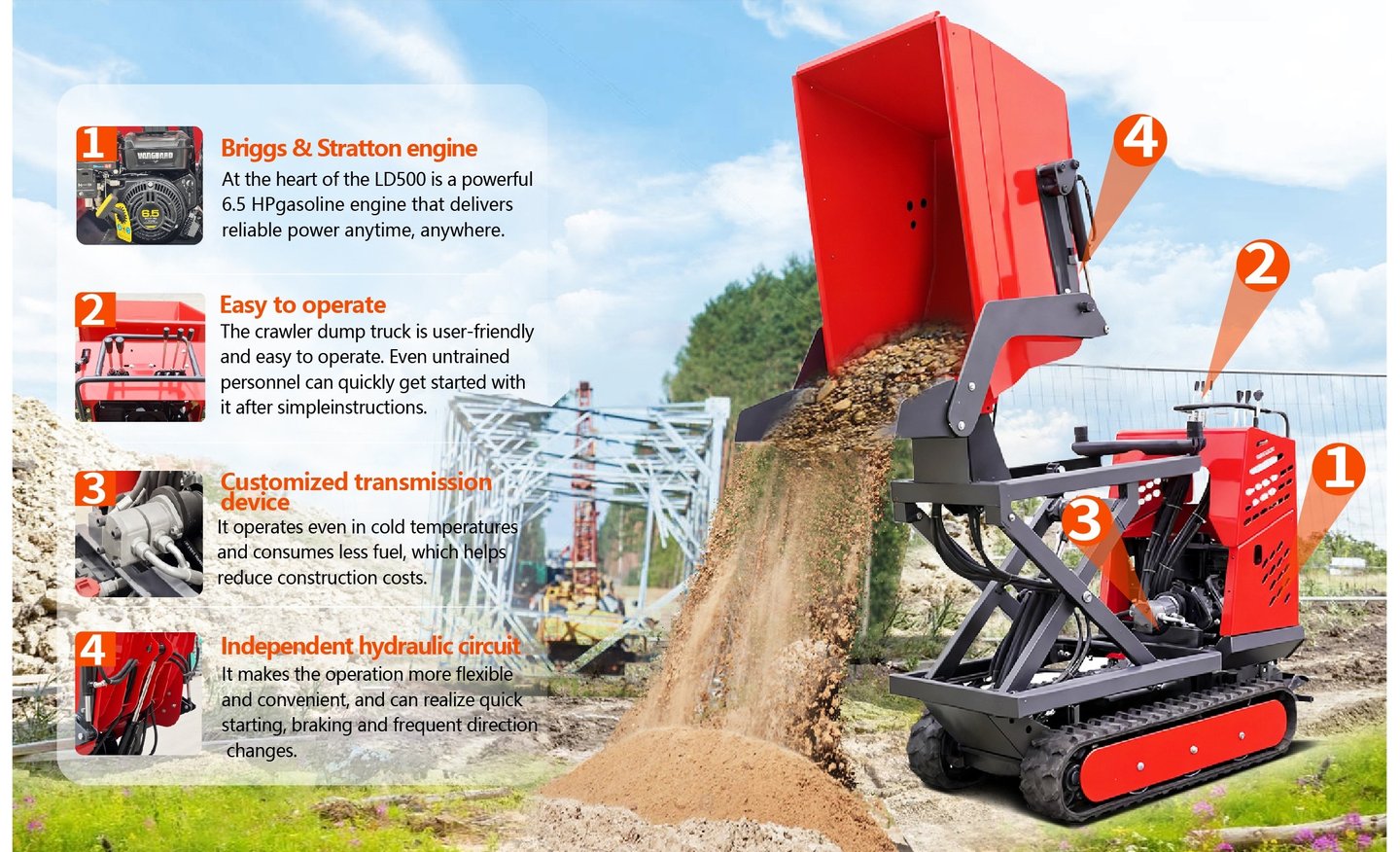

• Engine : Briggs & Stratton

• Maximum horsepower (ps) : 6.5

• Maximum power (Kw) : 4.8

• Displacement : 203cc

• Main pump type/model : gear pump

• Rated set pressure (Mpa) : 17

• Multi-way valve : 2+3

• Walking hydraulic motor type : cycloid motor

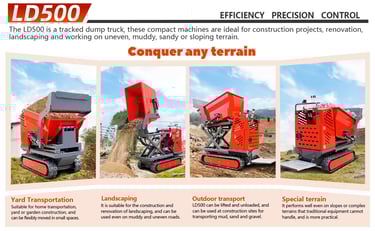

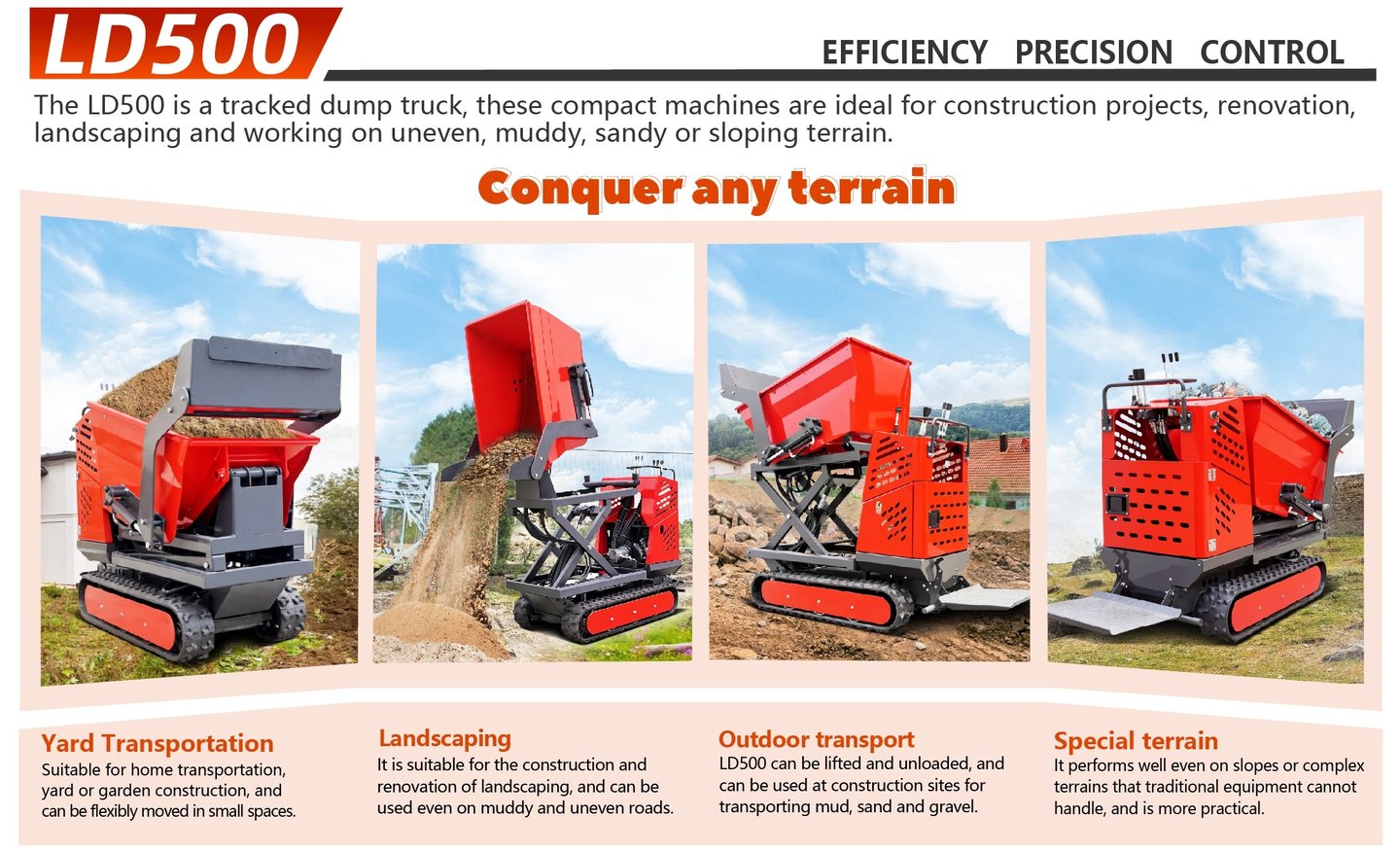

LD500 Mini Dumper can realize automatic unloading, greatly improving loading and unloading efficiency and saving labor costs. It is suitable for various working environments such as construction, water conservancy, road construction, mining, etc., and is especially suitable for short-distance transportation of various bulk materials.

✅All-Terrain Traction Zero-Turn Radius - Tracks offer all-terrain traction and stability across uneven, muddy and wet ground. Zero turn radius for pivoting on a dime without damaging the ground
✅Powerful & Versatile .Multi-speed heavy-duty transmission.
✅Heavy-Duty for Heavy Loads - With solid steel hopper, frame, and handles for durability. Easily and safely transports up to 550KG through tight spaces and across jobsites
✅Easy-To-Use - Evenly balanced to maximize control and prevent tipping.

Why choose us?

ABOUT LADYS

Quality is the life of LADYS Group. Technological innovation is the lifeline of LADYS, and excellence is the craftsmanship spirit followed by LADYS GROUP. Up to now, LADYS Group has obtained 28 national patents, 21 trademarks, and 3 copyrights. LADYS GROUP has ISO9001 international quality certification, system certification, EU CE certification, EPA/Euro 5 certification, SGS, German TUV, French BV certification, meeting the needs of various international markets.

Certifications and Achievements

ISO 9001 international quality certification, EU CE certification, Euro 5 certification, SGS certification, German TUV certification, French BV certification, 28 national patents, 21 trademarks, 3 copyrights
